商品の詳細:
お支払配送条件:
|
| Product name: | UL 1581 EN 60332 UL 1581 UL 2556 Single Core Cable Single Wire Flame Test Chamber VW-1 Flame Tester FT1/FT2 Flame Test Chamber | 燃焼室: | 1200×450mm |
|---|---|---|---|
| サンプルの長さ: | 600 ± 25mm | 空気流量範囲: | 1〜10L/min |
| pressure gauge: | 0~0.75kpa range adjustment | 点火モード: | 高圧自動点火 |
| gas flow range: | 100-1000mL/min | モデル: | ZL-1028 |
| ハイライト: | Single Core Cable Flame Test Chamber,UL 2556 Flame Test Chamber,UL 1581 Flame Test Chamber |
||

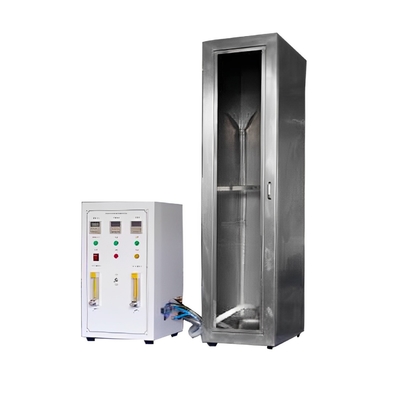

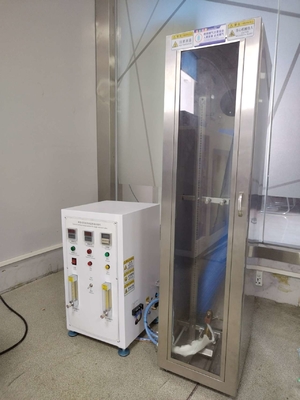

UL 1581 EN 60332 UL 1581 UL 2556 Single Core Cable Single Wire Flame Test Chamber VW-1 Flame Tester FT1/FT2 Flame Test Chamber
Technical Description:
The single wire and cable vertical burning tester is suitable for measuring the vertical burning non-invasive performance of single plastic wire, control wire, cross-linked, elevator, ship, mining cable and so on. Can also be made of high self-extinguishing low-smoke halogen-free flame-retardant polyolefin insulation material and 105 °C low-smoke halogen-free flame-retardant olefin radiation insulating material vertical burning test. The device is a device that can withstand the burning test of a single wire and cable. The device has the advantages of high accuracy, automatic timing, automatic end of test, and easy operation.
Reference Standards:
EN50265‐1
IEC60332‐1‐2/3:2004, IEC60695‐11‐ 2:2003.
GB/T 18380‐2008, GB/T 5169.14‐2007
Basic Specifications:

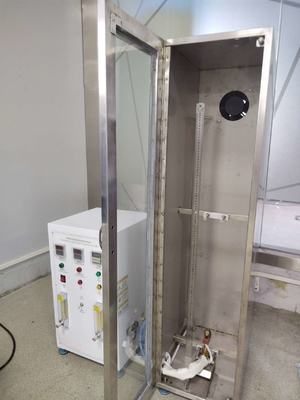

| The Combustion Chamber | The size of the box is 300x wide and 1200 x 450mm deep |
| Combustion Torch |
1KW combustion nozzle (made according to GB/T5169.14-2007/IEC60695-11-2: 2003 standard), the height of the blue flame core is 50-60mm, and the total height of the flame is 170-190mm |
| Gas | Use high-purity 95% technical grade propane gas (or gas instead) |
| Sample Installation |
A, sample length: 600 ± 25mm B, sample holder: the distance between the lower edge of the upper bracket and the upper edge of the lower bracket of the two horizontal brackets is 550mm |
| For the Fire Time | 0.1-999.9S continuous setting, in the set time the flame can continuously burn the sample |
|

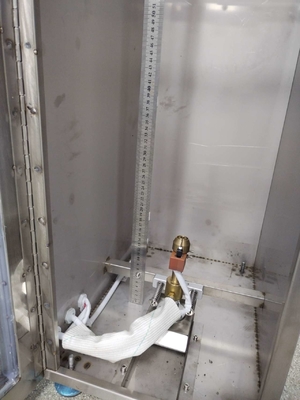

The Torch Installation Location |
the blue flame contact point distance from the lower edge of the upper bracket 475mm, the torch and the specimen's vertical axis into an angle of 45 degrees |
| Control Functions | manual or automatic to choose from |
| Gas Flow Range | 100-1000mL/min; |
| Air Flow Range | 1-10L/min; |
| Pressure Gauge | 0~0.75kpa range adjustment |
| Ignition Mode | high pressure automatic ignition |
