| 製品名: | ワイヤーおよびケーブルの高温および低温の通気老化試験チャンバー | 温度範囲: | 室温～250℃ |
|---|---|---|---|
| 内室の寸法: | 45×45×50cm | 温度制御: | PIDデジタル設定 |
| テスト棚: | 2つのトレイ | タイマー: | 0～9999H/M/S |
| 温度の決断: | 0.1°C | 温度の変動: | ±1°C |
| ハイライト: | Wire and Cable test chamber with ventilation,Environmental test chamber with temperature control,Aging test chamber for high and low temperature |
||
Overview:

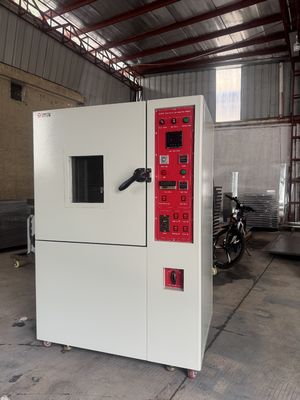

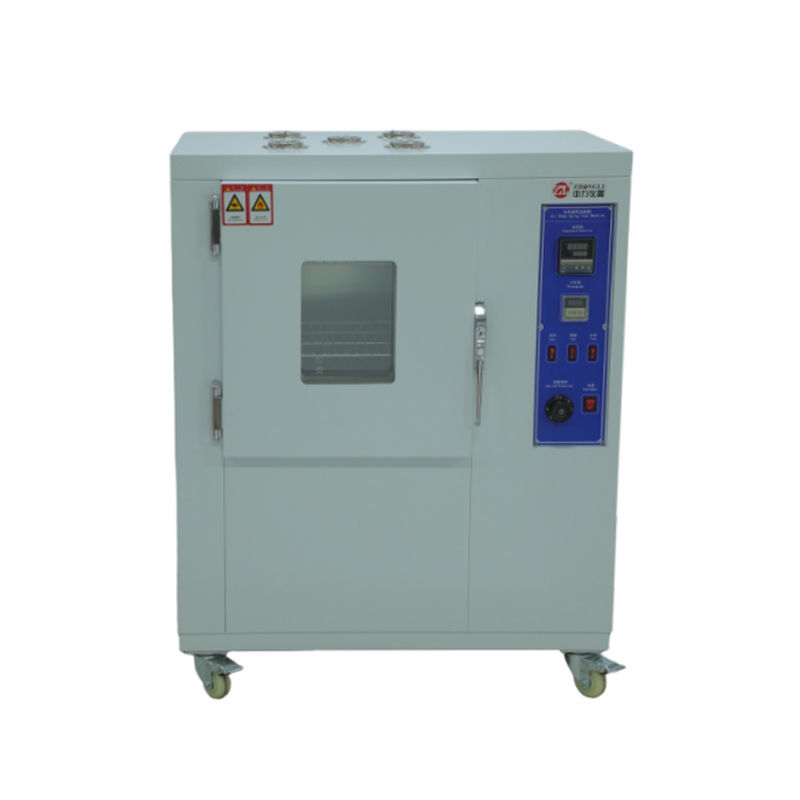

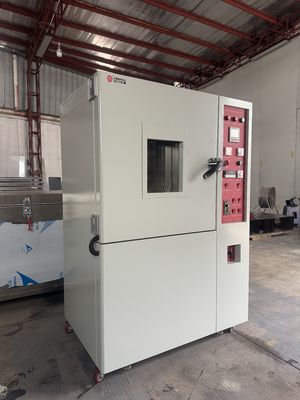

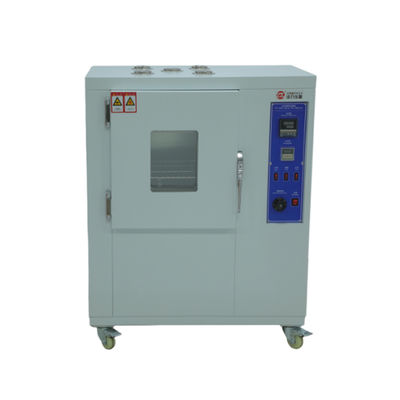

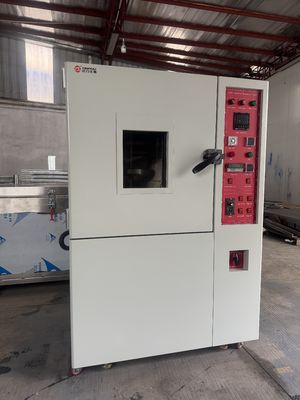

The Natural Ventilation Aging Tester is suitable for the footwear, leather, wire and cable, electronics industries, etc., used to study the physical property changes of various test specimens under heated conditions over a fixed period. The natural convection function ensures uniform temperature distribution. Complies with standard GB/T2951.12-2008.
Usage Features:
1.Utilizes microcomputer-based electronic digital control, ensuring precision, accuracy, stability, and reliability.
2.The chamber body uses silicone molded insulation packing, resistant to high temperatures and non-aging; includes an observation window for convenient viewing of samples during testing.
3.Heating employs a natural circulation (convection) air supply method, enabling rapid temperature rise and uniform distribution.
4.P.I.D. control system with dual over-temperature protection, ensuring safety and reliability.
5.Simple temperature setting, making operation more convenient.
6.Equipped with storage trays, adjustable in height as needed.
Technical Specifications:
| 1. Temperature Range | Ambient RT ~ 250°C |
| 2. Inner Chamber Dimensions | 45 × 45 × 50 cm |
| 3. Temperature Control | PID Digital Setting |
| 4. Test Rack | Two trays |
| 5. Timer | 0 ~ 9999 H/M/S |
| 6. Temperature Resolution | 0.1°C |
| 7. Temperature Fluctuation | ±1°C |
| 8. Air Circulation | Natural Convection |
| 9. Observation Window | Square viewing window |
| 10. Material | Inner Chamber SUS #304 Stainless Steel, Outer Case Electrostatic Spray Paint (Baked Enamel) |
| 11. Unit Weight | Approx. 90 kg |
| 12. Unit Dimensions (Approx.) | 835 × 500 × 1080 mm |
