Shoelace Abrasion Tester DIN 4843 SATRA TM 154 Standard

例外的な会社。最高!!!項目を非常によく詰められ、保護される急速に出荷すれば。会社との非常によい機械類そして非常によいコミュニケーション。Iつはトンコワン中レキ市の器械を使用してもっとより非常に推薦します。

—— Remy Attalin

販売人からの応答は非常に速く、有用でした。PO/PIを出し、確認することは1日にされました。プロダクトは翌日トランザクションが確認された後出荷されました。販売人が提供したサービスの点ではより満足することができませんでした。 機械は木の場合でよく詰まります。すべては良い状態で着きました。と来られる

—— Warunee Nahauythong

オンラインです

Shoelace Abrasion Tester DIN 4843 SATRA TM 154 Standard

Shoelace Abrasion Tester DIN 4843 SATRA TM 154 Standard
Shoelace Abrasion Tester DIN 4843 SATRA TM 154 Standard Shoelace Abrasion Tester DIN 4843 SATRA TM 154 Standard Shoelace Abrasion Tester DIN 4843 SATRA TM 154 Standard Shoelace Abrasion Tester DIN 4843 SATRA TM 154 Standard Shoelace Abrasion Tester DIN 4843 SATRA TM 154 Standard Shoelace Abrasion Tester DIN 4843 SATRA TM 154 Standard Shoelace Abrasion Tester DIN 4843 SATRA TM 154 Standard

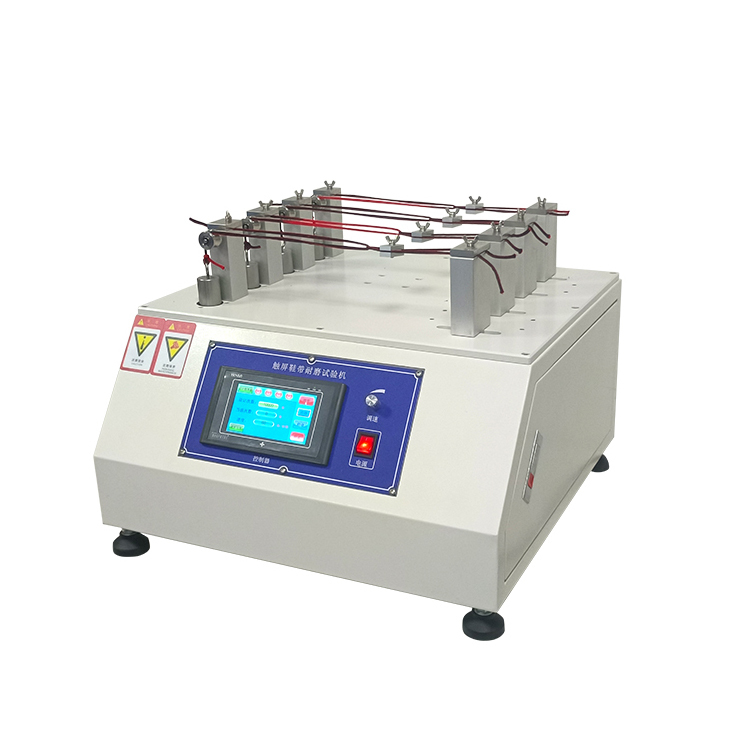

大画像 :  Shoelace Abrasion Tester DIN 4843 SATRA TM 154 Standard

商品の詳細:
Place of Origin: Guangdong,China
ブランド名: ZL
証明: CE,ISO
Model Number: ZL-7057B
お支払配送条件:
Minimum Order Quantity: 1 set
価格: negotiable
Packaging Details: Shoelace Abrasion Tester with ISO 22774 ASTM D6770 SATRA TM174 Standard will be Packaged in wooden case (fumigation free)
Delivery Time: 7-10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 Sets
詳細製品概要
Name: Shoelace Abrasion Tester with DIN 4843 SATRA TM 154 Standard Fixtures: 4
Counter: 0-999,999 cycles Speed: 60±6 cycles per minute (cpm)
Applied Load: 250±3 grams Compliance Standards: DIN 4843, QB/T 2226, SATRA TM 154
ハイライト:

Shoelace abrasion tester DIN 4843

,

SATRA TM 154 abrasion tester

,

Leather testing machine with warranty

Shoelace Abrasion Tester with DIN 4843 SATRA TM 154 Standard





Scope of Application:

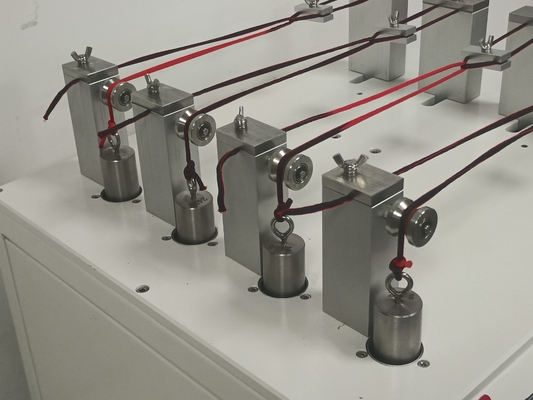

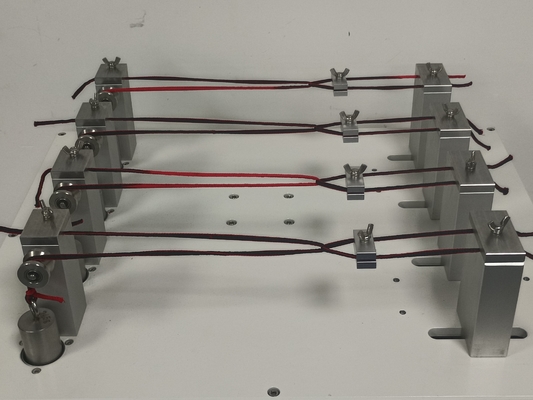

The shoelace wear tester is used to test the wear resistance of shoelaces. The shoelace installation method is: take two shoelaces, hook the middle sections together to form one right and one left, and clamp the two ends of the right lace with the right clamp (moving clamp) of the shoelace wear tester. After clamping, the two ends are naturally 25mm apart. Then clamp one end of the left lace with the left clamp (fixed clamp), and put the other end in the pulley groove, and hang a weight below. The clamping point is naturally 35+5mm away from the wheel groove. During the test, the moving clamp moves back and forth in a straight line at a constant speed to make the middle sections of the two shoelaces rub against each other. The number of frictions is recorded when the test reaches the specified number of frictions or the shoelaces break.

Product Specifications:

Controller Touch screen control
Fixtures 4 sets
Counter 0-999,999 cycles
Speed 60±6 cycles per minute (cpm)
Applied Load 250±3 grams
Motor AC variable-speed motor
Dimensions Approx. 66×58×42 cm
Power Supply AC 220V
Compliance Standards DIN 4843, QB/T 2226, SATRA TM 154



Shoelace Abrasion Tester DIN 4843 SATRA TM 154 Standard 0
