| 低下の高さの範囲: | 100-1500mm | ドロップエラー: | ±10 |
|---|---|---|---|
| 標本の重量: | 15kg±100g | 固定方法: | 空気圧 |
| 機械の寸法: | W700*D900*H2500mm | 機械重量: | 50kg |
| 電源: | 1f、220V、5A | 電圧オプション: | 220V、380V |
| 保護クラス: | IP56 | 正確さ: | 要件によって異なります |
| 消費電力: | 220V 5A | 落下高さの精度: | 1.0±0.01m |
| テスト標準: | IEC 60068-2-23、JIS C 0044 | 試験片の状態: | シャットダウン状態 |
| 表面衝撃: | 鉄板の表面 | ||
| ハイライト: | Battery drop tester for mobile phones,IEC 60068 compliant impact tester,JIS C 0044 battery testing machine |
||

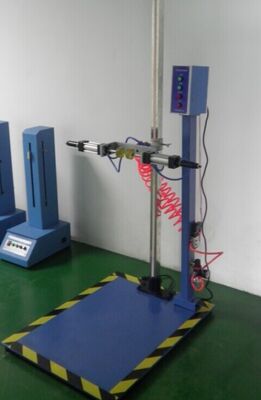

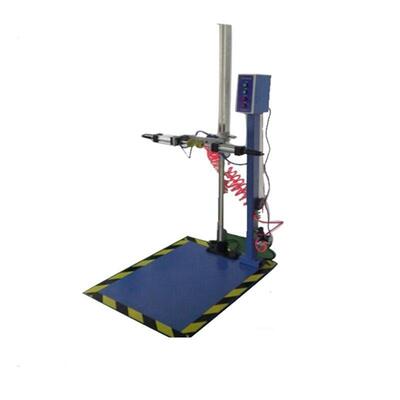

The Mobile Phone Free Drop Testing Machine evaluates unpackaged mobile phone batteries in shutdown state. The test involves dropping the specimen from a height of (1.0 ±0.01)m onto an iron plate surface. After testing, specimens may show surface scratches or small pits but must maintain proper function, appearance, and assembly according to relevant standards.
This equipment meets the following industry standards:
| Parameter | Specification |
|---|---|
| Model | Mobile Phone Free Drop Testing Machine |
| Height range of drop | 100-1500mm |
| Drop error | ±10 |
| Allow specimen weight | 15kg±100g |
| Clamping way | Pneumatic |
| Machine size | W700*D900*H2500mm |
| The weight of machine | 50kg |
| Power | 1ƒ,220V,5A |
Zhongli Instrument Technology Co., Ltd is a professional manufacturer of lab testing equipment headquartered in Dongguan, Guangdong, China. Since 2007, we have specialized in producing high-quality testing instruments for various industries.
Our products are exported to over 110 countries worldwide, with particular popularity in European and American markets. We serve diverse industries including rubber and plastics, food packaging, electronics, and scientific research institutions.
In addition to standard machines, our R&D team offers customized solutions tailored to specific testing requirements.
Our professional team will provide recommendations based on your specific testing requirements and specifications.
Standard delivery time is 15-20 working days after deposit receipt. Urgent orders may receive special arrangements.
Yes, we offer both standard and customized machines to meet specific testing needs.
We welcome factory visits and can assist with travel arrangements including airport pickup and hotel bookings.
We provide a two-year warranty including technical support and replacement parts. Engineer visits may be arranged when necessary.
For more information, please visit our official website: www.zltester.com
Contact us directly to discuss your testing equipment needs or request a quotation.
