| テスト力: | 600KN/1000KN | 効果的なテストスペース: | 1200mm×1200mm/1400mm×1400mm |
|---|---|---|---|
| テーブルの高さ: | 300mm | 力の値の精度: | ≤ ± 1% |
| 積載速度範囲: | 0.1～25KN/s | ピストンストローク: | 300mm |
| 変形の測定の範囲: | 0-20mm | 変形解像度: | 0.01mm |
| 荷重指示精度: | 0.1KN | 読み込み方法: | 電気流体式 |
| 制御モード: | 手動/電気油圧サーボ | メディアをロードしています: | 46#/68# 耐摩耗性作動油 |
| モーター出力: | 0.75kW | 電圧: | 380V/220V |
| ホスト重量: | 3000kg | ||
| ハイライト: | 60T servo hydraulic compression tester,manhole cover strength testing machine,computer control universal testing machine |
||

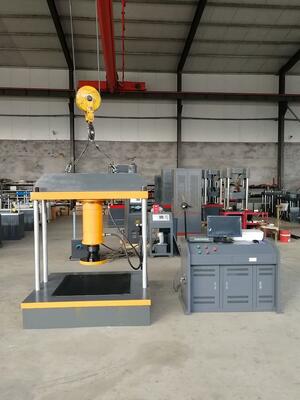

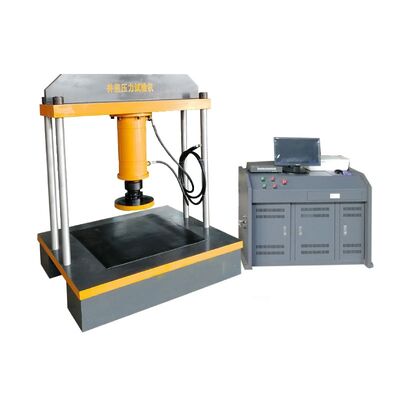

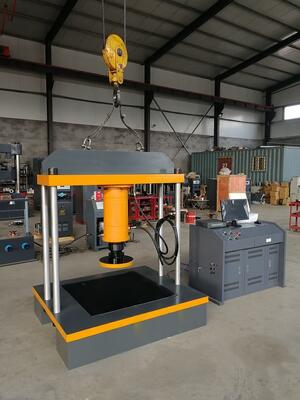

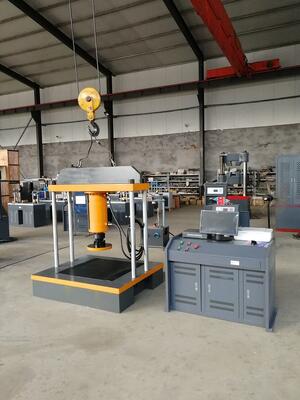

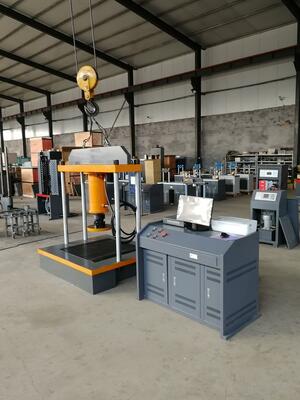

This computer-controlled servo hydraulic compression test machine is designed for evaluating the bearing capacity and deformation of manhole covers according to industry standards including CJ/T3012-1993, CJ/T121-2000, JC889-2001, and GB/T 23857-2009.
| Parameter | Value |
|---|---|
| Test Force | 600KN/1000KN |
| Effective Test Space | 1200mm×1200mm/1400mm×1400mm (customizable) |
| Table Height | 300mm |
| Force Value Accuracy | ≤ ±1% (better than level 1) |
| Loading Speed Range | 0.1~25KN/s (manual stepless speed regulation) |
| Piston Stroke | 300mm |
| Deformation Measurement Range | 0-20mm |
| Deformation Resolution | 0.01mm |
| Load Indication Accuracy | 0.1KN |
| Loading Method | Electro-hydraulic |
| Control Mode | Manual/Electro-hydraulic servo speed |
| Loading Media | 46#/68# anti-wear hydraulic oil |
| Motor Power | 0.75KW |
| Voltage | 380V/220V |
| Host Dimensions | 1200mm×1400mm×1500mm (L×W×H) |
| Host Weight | 3000Kg |
Our professional team will provide recommendations based on your specific testing requirements and specifications.
Standard delivery time is 15-20 working days after deposit receipt. Rush orders can be accommodated with special arrangements.
Yes, we offer both standard and customized machines tailored to your specific requirements.
We welcome factory visits and can assist with hotel arrangements and airport transfers.
Standard warranty is two years, including technical support and parts replacement. On-site engineer support is available when necessary.
