| 最大負荷: | 300kn | 正確な等級: | 0.5級 |
|---|---|---|---|
| 効果的測定範囲: | 0.4%~100% | 精度の測定: | 表示値±0.5% |
| テスターの解像度: | 最大負荷1/200000 | 変位精度: | 許容誤差: ±0.5% / ±0.2% |
| 有効な抗張打撃: | 800mm | 有効なテストの幅: | 400mm |
| 電源: | 220V±10％ | テスト力の範囲: | 1%-100% |
| テスト力の決断: | 最大試験力の1/500000 | 変形解像度: | 最大変形量 1/500000 |
| 変位解像度: | 0.001mm | 速度範囲: | 0.01mm/min～400mm/min |
| サーボ モーター力: | 3kw | ||
| ハイライト: | 300kN universal testing machine,30T capacity tensile tester,servo tensile machine for steel wire |
||

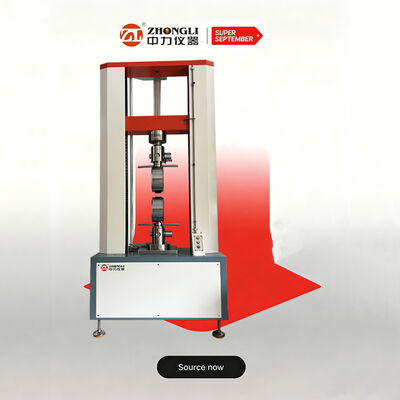

Our microcomputer-controlled electronic universal testing machine incorporates advanced foreign technology to deliver superior performance for material testing applications.
This versatile testing machine performs mechanical property tests on both metal and non-metal materials, including:
Ideal for quality control, research, aerospace, metallurgy, automotive, and construction industries.
Meets national standards GB/T228.1-2010 (metal tensile testing) and GB/T7314-2005 (metal compression testing), with compatibility for GB, ISO, ASTM, and DIN standards.
Standard configuration includes wedge-type tensile attachment and compression attachment.
| Parameter | Value |
|---|---|
| Maximum Test Force | 300 kN |
| Test Force Measurement Range | 1%-100% |
| Test Force Resolution | 1/500000 of maximum force |
| Speed Range | 0.01-400 mm/min (stepless) |
| Tensile Stroke | 600 mm |
| Compression Space | 600 mm |
| Servo Motor Power | 3 kW |
| Dimensions | 900×600×2000 mm |
| Weight | Approx. 500 kg |
Since 2007, we have specialized in manufacturing laboratory testing equipment for various industries including rubber, plastics, food packaging, and electronics. Our products are exported to over 110 countries with particular success in European and American markets.
