| 最大負荷: | 5KN、1トン、2トン | 効果的測定範囲: | 0.2%~100% （1grade）/0.4%~100% （0.5の等級） |
|---|---|---|---|
| 精度の測定: | 価値±1%/Displayをvalue±0.5%表示しなさい | テスターの解像度: | 最大負荷1/200000 |
| 有効なテストの幅: | 390mm | 有効な抗張打撃: | 800mm;1000mm;1200mm |
| テストの速度の範囲: | 0.001~200mm/分500mm/分 | 変位の測定の正確さ: | 許容:±0.5%/の許容:±0.2% |
| 変形測定システム: | 最小スパン:10mm、最大範囲:800mm | 測定された変形の精度: | 許容誤差: ±0.5% |
| 過負荷保護: | 過負荷 10%、自動保護 | 機械のサイズ: | 80×55×220cm |
| 電源: | 220V、50Hz | 力: | 0.4kw |
| 機械重量: | 250KG | ||
| ハイライト: | 20KN universal testing machine for material testing,mechanical tensile tester with competitive price,universal testing machine with warranty |
||

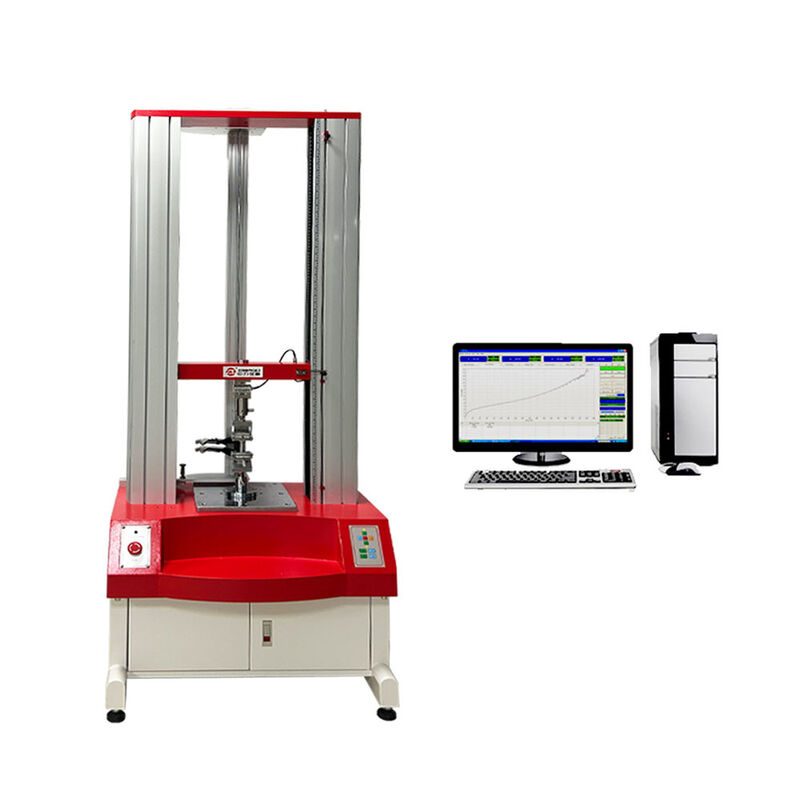

The High Temperature Universal Tensile Strength Testing Machine combines electronic technology with mechanical transmission for precise material testing. It features accurate load speed, force measurement range, and high sensitivity for load and displacement measurement and control.
Ideal for testing flexible materials with large deformation including rubber, plastics, leather, and more. Performs tensile, tear, adhesive strength, and peel tests.
| Parameter | Specification |
|---|---|
| Max Load | 5KN, 1ton, 2 ton |
| Accuracy Grade | 1% / 0.5% |
| Effective Measuring Range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Testing Speed Range | 0.001~200mm/min; 500mm/min (1000mm/min optional) |
| Effective Testing Width | 390mm (customizable) |
| Power Supply | 220V, 50HZ, 0.4KW |
| Machine Weight | 250kg |
Rubber & Plastics, Metallurgy, Manufacturing, Electronics, Automotive, Textiles, Packaging, Food, Medical Equipment, Research Laboratories, and more.
Our professional team will provide recommendations based on your specific testing requirements and specifications.
Typically 15-20 working days after deposit receipt. Urgent orders can be accommodated with special arrangements.
Yes, we offer both standard and customized machines tailored to your specific requirements.
We offer a two-year warranty with technical support and parts replacement as needed.
