| 最大負荷: | 5KN、10KN、20KN | 効果的測定範囲: | 0.2%~100% （1grade）/0.4%~100% （0.5の等級） |
|---|---|---|---|
| 精度の測定: | 価値±1%/Displayをvalue±0.5%表示しなさい | テスターの解像度: | 最大負荷1/200000 |
| 有効なテストの幅: | 390mm | 有効な抗張打撃: | 800mm;1000mm;1200mm |
| テストの速度の範囲: | 0.001~200mm/min;500mm/min (1000mm/minオプション) | 変位の測定の正確さ: | 公差：±0.5％／公差：±0.2％ |
| 変形測定システム: | 最小スパン:10mm、最大範囲:800mm | 測定された変形の精度: | 許容誤差: ±0.5% |
| 過負荷保護: | 積み過ぎ10%の自動保護 | 機械のサイズ: | 80×55×220cm |
| 電源: | 220V、50Hz | 力: | 0.4kw |
| 機械重量: | 250 kg | ||
| ハイライト: | 10kN Universal Testing Machine,20kN Tensile Strength Testing Machine,50kN Computer Universal Tensile Strength Testing Machine |
||

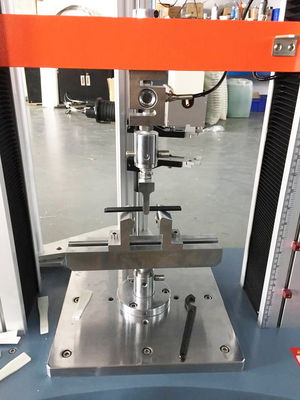

This test machine is designed for testing flexible materials with large deformation, such as rubber, plastics, and leather. It performs tensile, tear, adhesive strength, and peel tests, equipped with a large deformation extensometer for precise measurement of specimen deformation.
Widely used in quality control across multiple industries including:
GB/T16491-1996 Electronic Universal Testing Machine
| Model | ZL-8001 |
|---|---|
| Max load | 5KN,10KN, 20KN |
| Accurate grade | 1 % /0.5 % |
| Effective measuring range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring accuracy | Display the value ±1%/Display the value±0.5% |
| Tester resolution | Max load 1/200000, regardless of inside and outside, constant the resolution |
| Effective testing width | 390mm (can be widened according to customer's requirement) |
| Effective Tensile stroke | 800mm;1000mm;1200mm (can be increased according to customer's requirement) |
| Range of testing speed | 0.001~200mm/min; 500mm/min (1000mm/min is option) |
| Power supply | 220V, 50HZ |
| Machine weight | Approximately 250 Kg |

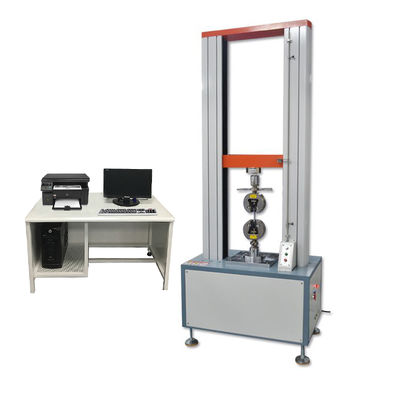

The ZL-8001A Computer Servo Type Universal Testing Machine combines electronic technology with mechanical transmission for accurate load speed and force measurement. It features high accuracy and sensitivity for load, displacement measurement and control, capable of constant-velocity loading and displacement testing. Simple to operate, it's ideal for quality control in production lines, primarily for testing non-metallic and metallic materials with loads less than 2 tons.
Features photoelectric encoder for displacement measurement, embedded single-chip microcomputer controller with multifunction software combining measurement, control, calculation and storage. Automatically calculates stress, rate of elongation, tensile strength, elastic modulus, and statistical results. Records maximum points, breaking points, and designated values. Computer displays dynamic testing curves and processes data for post-test analysis.
