| 最大負荷: | 5KN、10KN、20KN、カスタマイズ可能 | 効果的測定範囲: | 0.2%~100% （1grade）/0.4%~100% （0.5の等級） |
|---|---|---|---|
| 精度の測定: | 価値±1%/Displayをvalue±0.5%表示しなさい | テスターの解像度: | 最大負荷1/200000 |
| 有効なテストの幅: | 390mm | 有効な抗張打撃: | 800mm;1000mm;1200mm |
| テストの速度の範囲: | 0.001~200mm/min;500mm/min （1000mm/minは選択である） | 変位の測定の正確さ: | 許容:±0.5%/の許容:±0.2% |
| 変形測定システム: | 最小スパン：10mm、最大変形範囲：800mm | 測定された変形の精度: | 許容差：±0.5％ |
| 過負荷保護: | 過負荷 10%、自動保護 | 機械のサイズ: | 80x55x220cm(長さ*幅*高さ) |
| 電源: | 220V、50Hz | 力: | 0.4kw |
| 機械重量: | 250 kg | ||

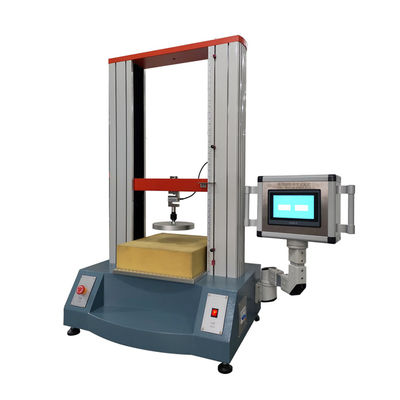

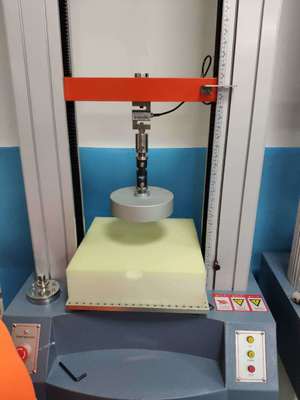

| ハイライト: | 800mm Tensile Stroke Universal Testing Machine,390mm Testing Width Universal Testing Machine,Two-Year Warranty Foam IFD Hardness Tester |
||

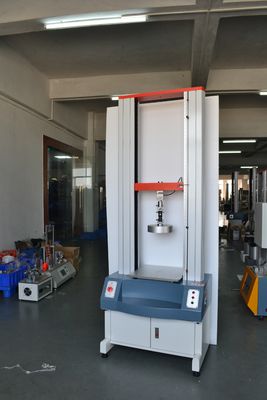

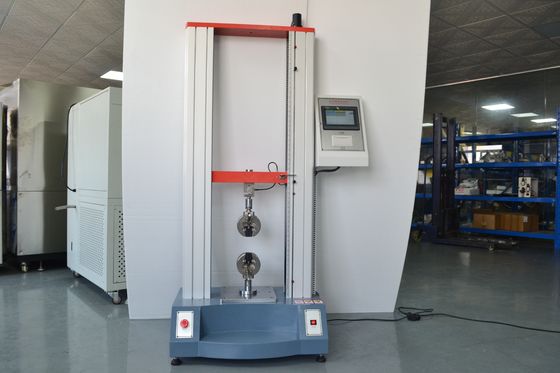

| Model | ZL-8001 Computer Servo Universal Tensile Strength Testing Machine |
|---|---|
| Max load | 5KN,10KN, 20KN, Can be customized |
| Accurate grade | 1 % /0.5 % |
| Effective measuring range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring accuracy | Display the value ±1%/Display the value±0.5% |
| Tester resolution | Max load 1/200000, regardless of inside and outside, constant the resolution |
| Load sensor | Basic configuration: sensor(max load): one. Extended configuration: can add more sensors |
| Effective testing width | 390mm (can be widened according to customer's requirement) |
| Effective Tensile stroke | 800mm;1000mm;1200mm (can be increased the height according to customer's requirement) |
| Range of testing speed | 0.001~200mm/min; 500mm/min (1000mm/min is option) |
| Accuracy of displacement measurement | Tolerance: ±0.5%/ tolerance: ±0.2% |
| Deformation of measured system | Min span: 10mm, Max range of deformation: 800mm. Extended deformation: Min span: 25mm,50mm,100mm, range of deformation: 5mm,10mm,25mm |
| Accuracy of measured deformation | Tolerance: ±0.5% (according to requirement of customer to choose the larger or small deformation) |
| Safety | Electronic-limit protection |
| Testing platform moving device | Fast/slow two speeds to control, can jog |
| Return back | Manual or automatic operation. After the test, the moving iron returns to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10%, automatic protection |

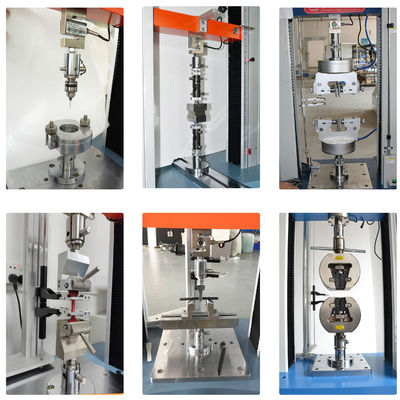

| Fixture | A set of tensile fixture |
| Machine size | 80x55x220cm (length*width*height) |
| Power system | Panasonic AC Servo Motor + Driver + high-precision ball screw |
| Power supply | 220V, 50HZ |
| Power | 0.4KW (depending on different demand of force, using different motor) |
| Machine weight | (about) 250 Kg |
| Units | Kg, N, LB, TON, can be exchanged |
