4-Station Martindale Abrasion Tester for Fabric ASTM D4970

例外的な会社。最高!!!項目を非常によく詰められ、保護される急速に出荷すれば。会社との非常によい機械類そして非常によいコミュニケーション。Iつはトンコワン中レキ市の器械を使用してもっとより非常に推薦します。

—— Remy Attalin

販売人からの応答は非常に速く、有用でした。PO/PIを出し、確認することは1日にされました。プロダクトは翌日トランザクションが確認された後出荷されました。販売人が提供したサービスの点ではより満足することができませんでした。 機械は木の場合でよく詰まります。すべては良い状態で着きました。と来られる

—— Warunee Nahauythong

オンラインです

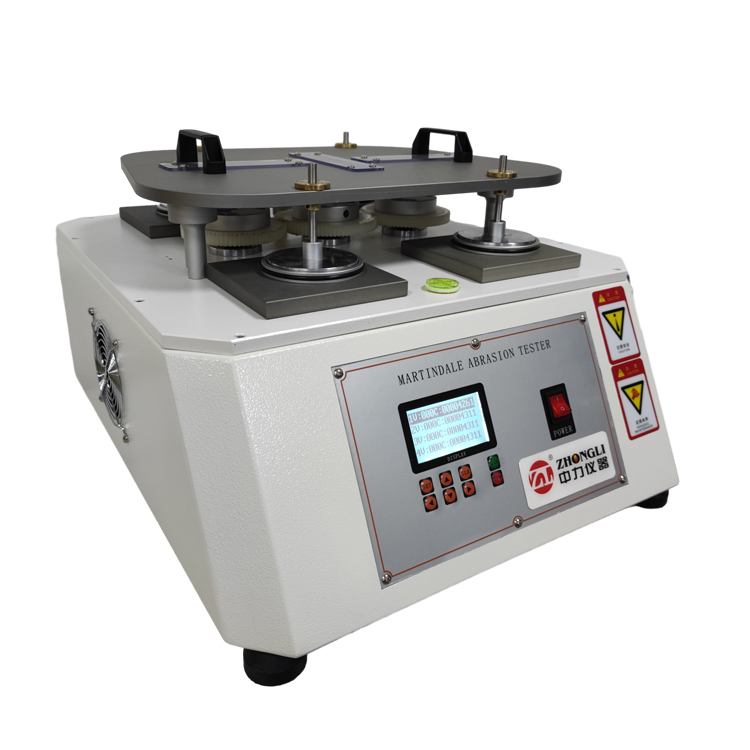

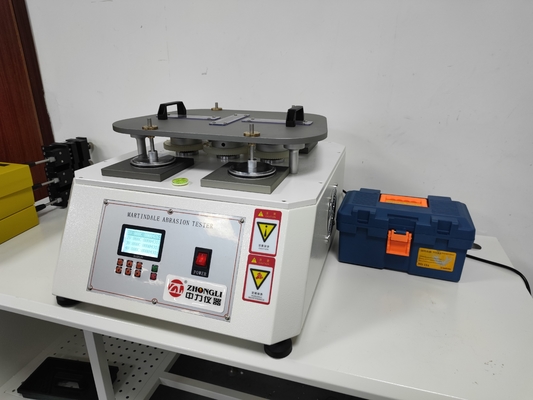

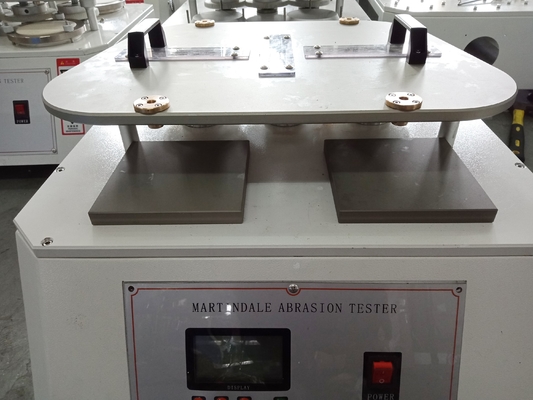

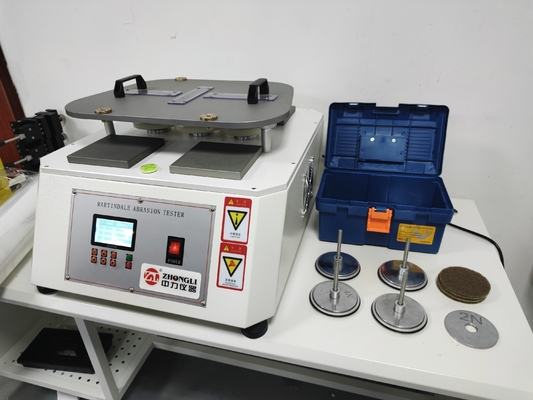

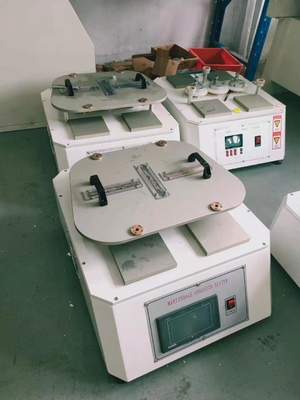

4-Station Martindale Abrasion Tester for Fabric ASTM D4970

4-Station Martindale Abrasion Tester for Fabric ASTM D4970

大画像 :  4-Station Martindale Abrasion Tester for Fabric ASTM D4970

商品の詳細:
Place of Origin: China
ブランド名: ZL
証明: CE,ISO
Model Number: ZL-5006C
お支払配送条件:
Minimum Order Quantity: 1 SET
価格: negotiable
Packaging Details: EN 13329 ASTM D4060 BS EN16094 Martindale Abrasion Tester for Wood Floor Martindale Abrasion Machine is Packaged within safety wooden case
Delivery Time: 3-7 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 set per month
詳細製品概要
Working station: 4 / 6 / 8 / 9 Usage: Abrasion Testing for fabric / Texitle
Maximum dynamic range: 24±0.5mm ,60.5±0.5mm Standards: ASTM D4970
Warranty: 12 month Key words: EN 13329 ASTM D4060 BS EN16094
Estimated counting: 0~999999 times Gripper: 200±1g
Cloth samples hammer: 395±2g Furniture accessories sample hammer: 594±2g
Stainless steel butterfly piece: 260±1g
ハイライト:

4-station fabric abrasion tester

,

Martindale tester ASTM D4970

,

textile abrasion testing machine

EN 13329 ASTM D4060 BS EN16094 Martindale Abrasion Tester for Wood Floor Martindale Abrasion Machine





Product Features:

This instrument is designed by absorbing the advantages of similar instruments at home and abroad. It has a beautiful appearance and is easy to operate. The microcomputer system adopts two counting methods, which is intuitive and generous, and is easy to set. Four stations can be tested at the same time to improve test efficiency. The instrument also has two Lissajous 24mm×24mm and 60.5mm×60.5mm motion trajectories and a variety of supporting accessories, which can adapt to various test method standards.

This instrument is suitable for testing the pilling degree of fabrics such as GB/T4802.2, ASTM D4970, ISO12945-2, etc. Its principle: a round sample and fabric of the same material are rubbed together in a Lissajous pattern motion trajectory under a given pressure. After reaching the specified number of revolutions, the pilling grade of the sample is evaluated. It is also suitable for fabric wear resistance tests such as GB/T13775, ASTM D4966, ISO12947, etc.

Its principle: under a certain pressure, the circular fabric sample rubs against the standard abrasive according to the motion trajectory of the Lissajous curve, causing the sample to be damaged. The wear resistance of the fabric is expressed by the number of times the sample is damaged. performance.



Standards Compliant:

Wooden floor testing: BS EN16094-2012 Laminated wooden flooring. Micro-scratch determination test method BS EN16094-2012 Martindale Abrasion Tester

[Scope of application]: This instrument is suitable for testing the friction resistance of floor coatings, floor paint films, floor coverings, artificial leather, synthetic leather, etc. under certain pressure conditions.





Technical Parameters:



Station Number 4 station (6 station , 8 station , 9 station can optional)
Count Display a. Estimated counting:0~999999 times
b. Total counting:0~999999 times
Maximum Dynamic Range 24±0.5mm ,60.5±0.5mm

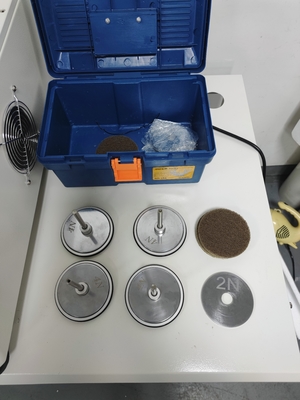

Weight of Pressure Thing a.Gripper:200±1g
b. Cloth samples hammer:395±2g
c. Furniture accessories sample hammer:594±2g
d. Stainless steel butterfly piece:260±1g

Effective Friction Diameter of

Grinding Block

A type: 200g (1.96N) friction head ¢ 28.8-0.084mm
B type: 155g (1.52N) friction head ¢ 90-0.10mm

The Relative Velocity of Gripper and

the Grinding Station

50-2r/min
Weight of Pressure hammer 2385±10g
Dimensions 885mm×600mm×410mm(L×W×H)
Weight 150kg
Power AC220V,50Hz

Amount of Pressurized Material



Weight: 9kpa 12kpa

Sample fixing kit: 795g

Cutter diameter: 38mm

Effective friction diameter of grinding block: φ28.8mm

Optional: Pilling device (effective friction diameter of grinding block: φ90mm)



4-Station Martindale Abrasion Tester for Fabric ASTM D4970 0
