商品の詳細:
お支払配送条件:
|
| 名前: | 研究室用ミニ卓上二軸押出機 二軸押出造粒機 | モデル: | ZL-3017D |
|---|---|---|---|
| スクリップ直径: | 16*2個 | 設計された出力: | 0.1～3kg/h |
| エクストルーダーサイズ: | 0.7*0.2*0.5m | 体重: | 50kg |
| エクストルーションセンターの高さ: | 300mm | モーターパワー: | 750W |
| LD: | 16:1 | ||
| ハイライト: | LD 16 1 Laboratory Extrusion Pelletizer,Twin Screw Laboratory Extrusion Pelletizer,Small Scale Production Laboratory Extrusion Pelletizer |
||

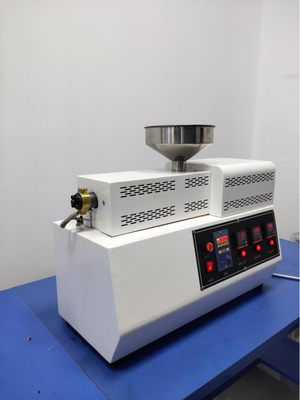

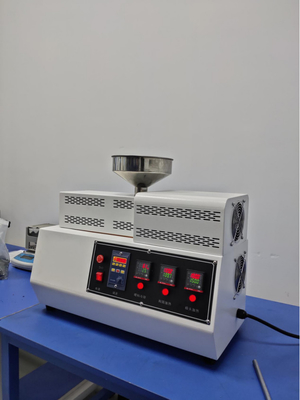

Laboratory Mini Desktop Twin Screw Extruder Twin Screw Laboratory Extrusion Pelletizer
I. Equipment overview:
Product performance of laboratory small twin-screw extruder:
*Professionally manufactured screw and barrel with high processing precision and quality assurance.
* Brand motor drive, screw speed control is stable and reliable.
* Adjustable particle size and thickness of materials in the screw to fully get plasticized and mixed.
Applications of laboratory small twin-screw extruder:
* Material melting, plasticizing extrusion
* Optimization of extrusion process parameters
* Organization of small-scale experimental lines for film, sheet, pipe, pelletizing, etc.
II. Equipment parameters:
| Model | ZL-3017D |
| Screw diameter | Taper 16*2pcs |
| Designed output | 0.1-3KG/h |
| Extruder size | 0.7*0.2*0.5m |
| Weight | 50kg |
| Extrusion center height | 300mm |
| Extrusion direction | Right → out to the left |
| Motor power | 750w |
| Voltage | 220V 50HZ [three-plug plug] |
| LD | 16:1 |
| Heating temperature | Normal temperature -350℃/450℃ [quotation subject] |
| Warming time | Normal temperature -350 degrees/30min |
| Temperature control accuracy | ±1℃ |
| Temperature fluctuation | ±2.5℃ |
| Cooling method | Three-zone air-cooled active zone cooling |
| Applicable raw materials | PP,PC, PVCABS, PE, PA6, PS, PEI, PIMMA, POM, TPU, PTE, PEEK, etc. |
| Feeding area with silent cooling device [air-cooled or water-cooled optional offer subject to]. | |
| Screw barrel material | 38Crmola,Nitrided treatment |
| Space occupied |

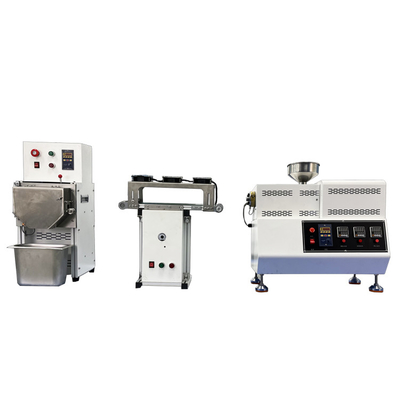

Length 1.5m*Width 500mm*Height 500mm 【Extruder + air-cooling device + haul-off and pelletizing device】 |
